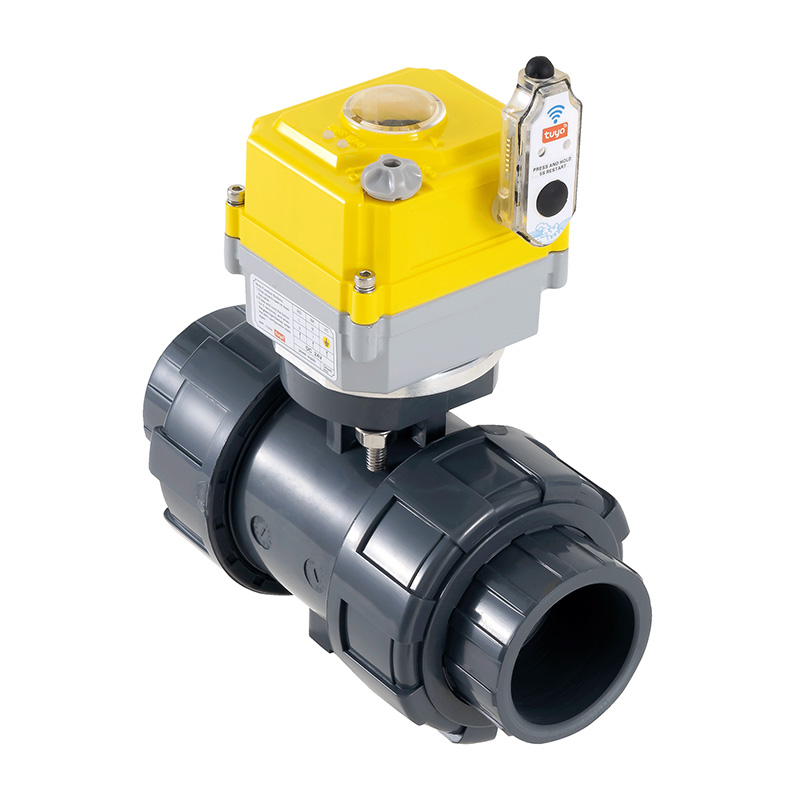

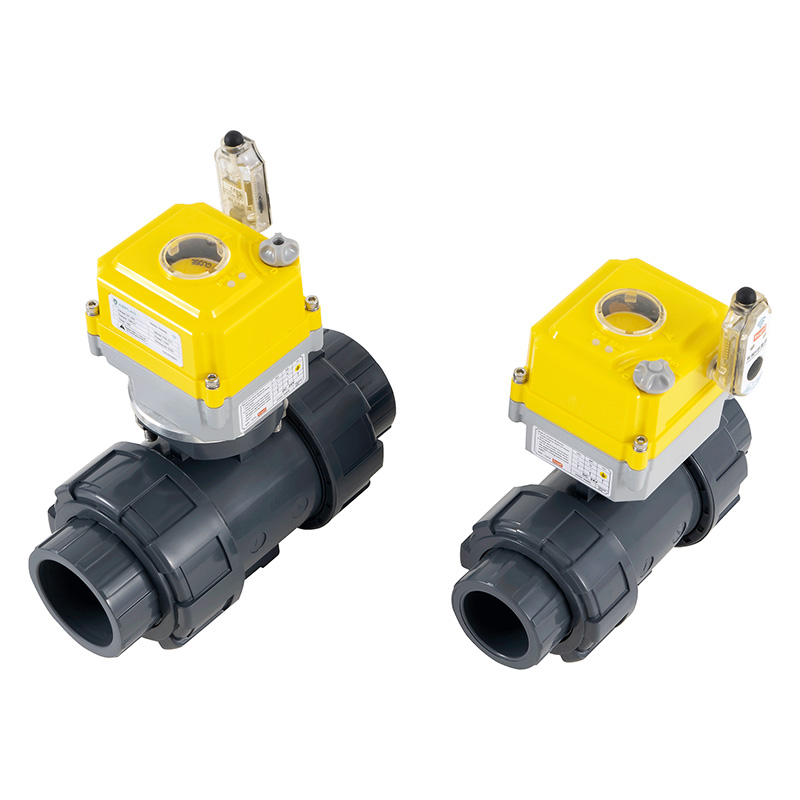

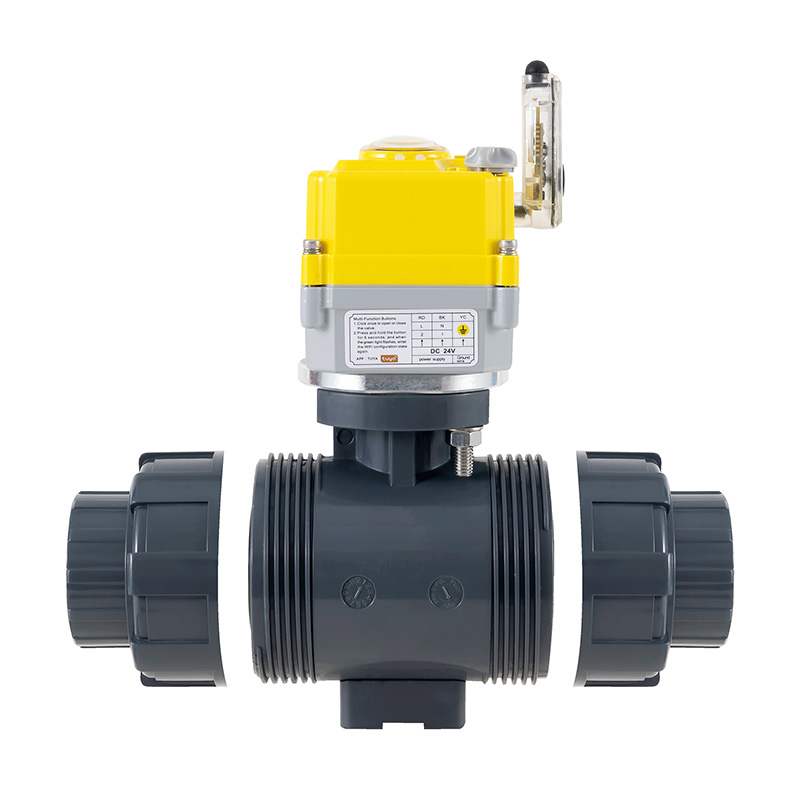

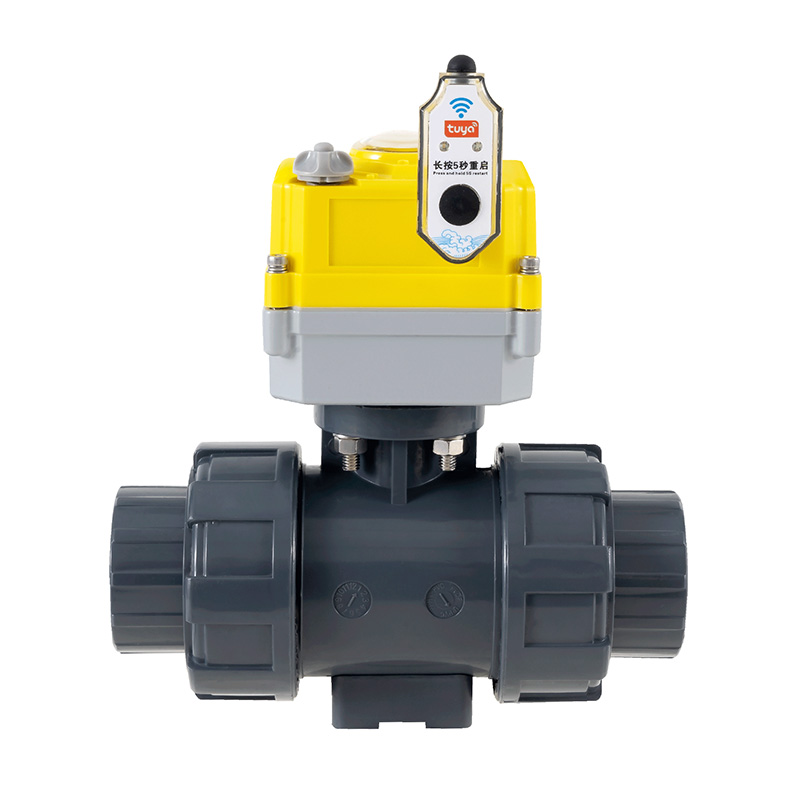

WiFi PM-01L Regulatory type 2 Way UPVC Electric Ball Valve
Parameter Table
Electic Actuator Parameters：Type：Switch Type
Rated voltage：AC110-230V、DC24V、DC12V(Optional)
Rated power： ≤10W（DC24V） ≤15W（AC220V）
Control mode：无源控制/有源控制/Tuya WIFI
System accuracy： ±0.2%
Torque ：10Nm
Shell material：die-casting aluminum
Rotation angle：0-330°(Custom settings)
Open/Close time ：8S
Operation temperature： -25~55℃
Angle display：0-90°
display screen ：OLED 中文/English(Custom settings)
Protection class：IP67
Manual operation： Handle & Button
Shell materiaParameter Table Body Parameters
Nominal Diameter DN15~DN25 Valve material UPVC\CPVC Sealing material EPDM、PTFE Maximum pressure 1.0MPa temperatur 0℃~55℃（UPVC）0℃~82℃（CPVC） Suitable medium Water\air\various corrosive fluids Connection method Socket adhesive SIZE:
External dimensions of PM-01 electric actuators and 2-Way DN15-DN50 internal UPVC ball valves DN Inch D d L L1 L2 h-Thread h-Socket H H1 W DN15 1/2” 50.5 12.8 120 67 63 16 22.5 32 69 72 DN20 3/4” 62.5 19 135 72 63 18 25 40 69 72 DN25 1” 69 24.5 150 80 63 22 27.5 45 69 72 DN32 11/4” 82.5 30 167 90 63 25 31 54 69 72 DN40 1.5” 99.0 38 178 93 63 27 34 63 69 72 DN50 2.0” 122.6 49 204 111 63 31 38 73 69 72 Note: the above parameters are measured manually, there will be 1-3mm error, the specific object shall prevail
Smart PVC electric valve
WiFi PM-01L Regulatory type 2 Way UPVC Electric Ball Valve
Type:：Switch Type
Rated voltage:AC110-230V、DC24V、DC12V（Optional）
Rated power:<10W (DC24V)<15W（AC220V)
Controlmode：Tuya/WIF1
System accur acy:±0.2%
Torque:10Nm
Shell material:die-castingaluminum
Rotation angle:0-330°(Custom settings）
Type:：Switch Type
Rated voltage:AC110-230V、DC24V、DC12V（Optional）
Rated power:<10W (DC24V)<15W（AC220V)
Controlmode：Tuya/WIF1
System accur acy:±0.2%
Torque:10Nm
Shell material:die-castingaluminum
Rotation angle:0-330°(Custom settings）
