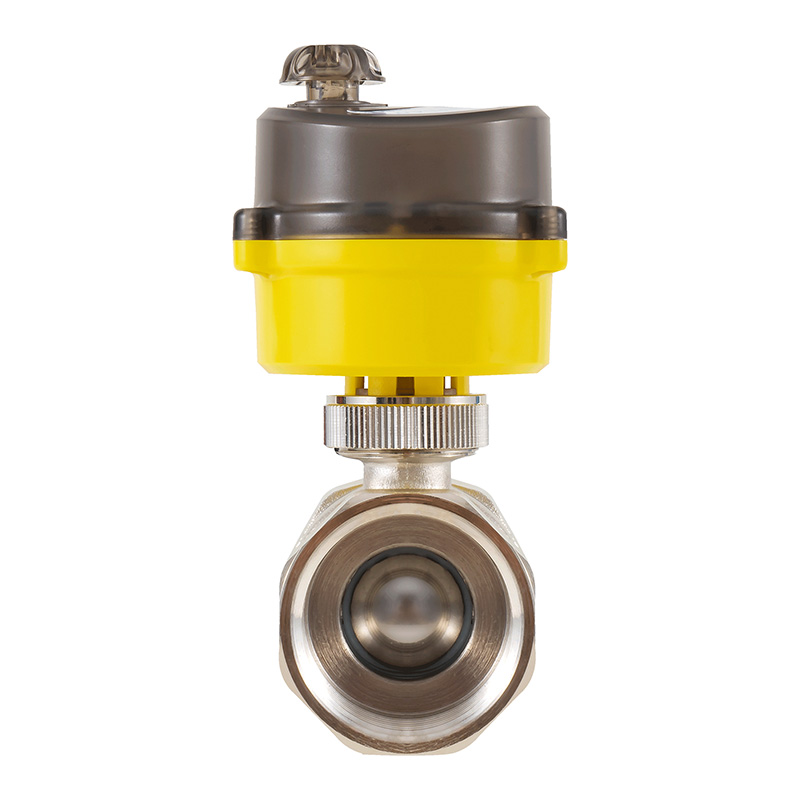

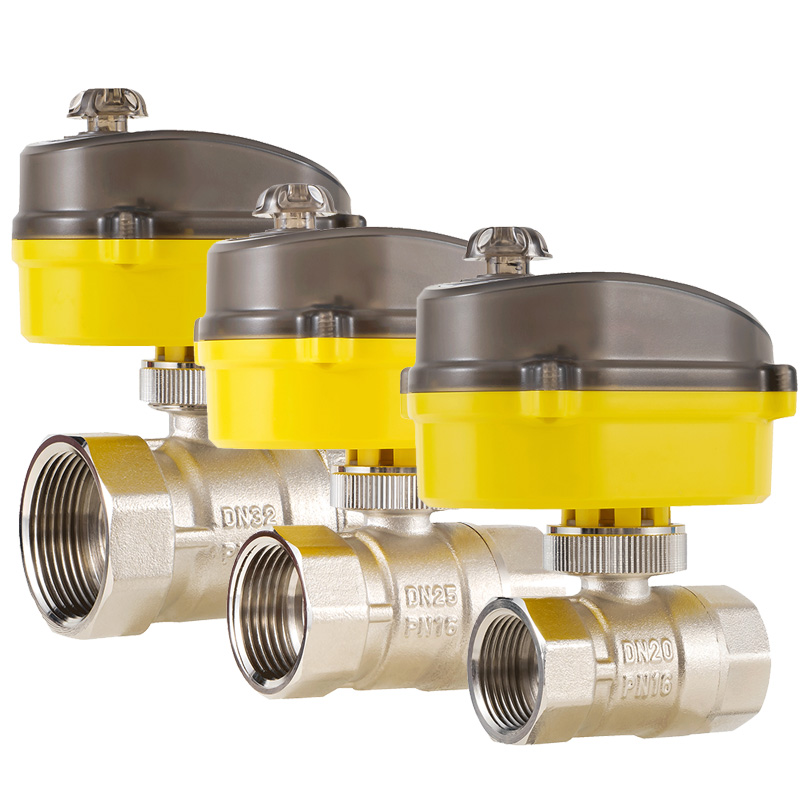

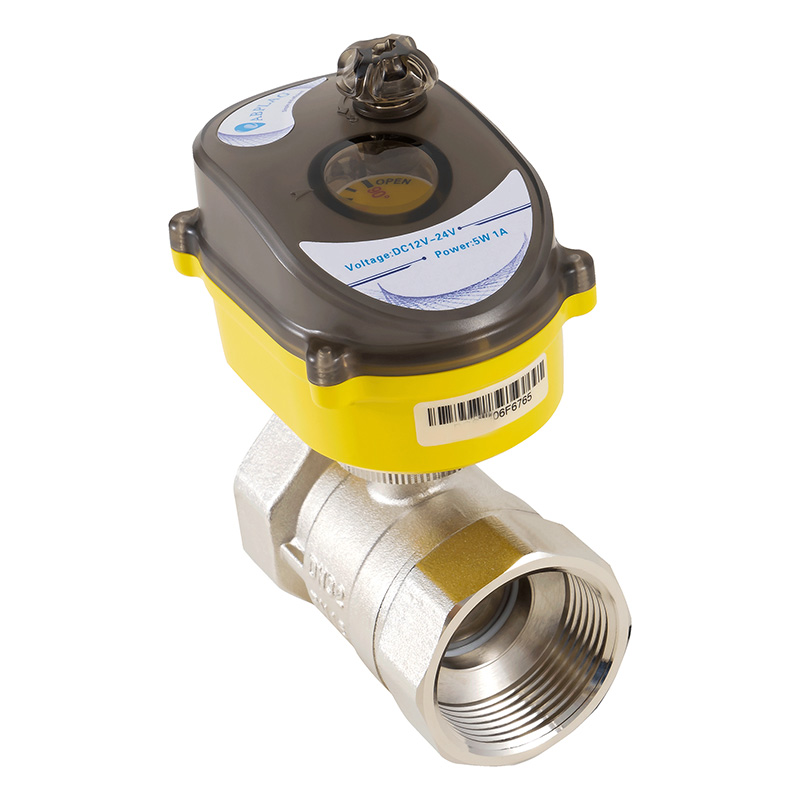

WIFI TUYA PM-01L Regulatory type 2 Way Brass Electric Ball Value
Parameter Table
Type：Regulatory Type
Rated voltage：DC24V(Optional)
Rated power： ≤5W（DC24V）
Control mode：无源控制/有源控制//WIFI(Optional)
System accuracy： ±0.2%
Torque：7Nm
Shell material：Rotation angle
plastic：0-330°(Custom settings)
Open/Close time 15S
Operation temperature：-25~55℃
Angle display：0-90°
Application： TUYA
Protection class：IP65
Manual operation ：Handle & Button
Shell material： 110v-240v power adapterParameter Table
Body Parameters
Nominal Diameter DN8~DN3 Valve material Brass Sealing material PTFE Maximum pressure 1.0MPa temperatur -25℃~80℃ Suitable medium Water\Gas\Oil Connection method Internal thread(G,NPT) size:
PA-01 2-Way electric copper ball valve mode DN INCH D G L L1 H H1 W DN15 1/2” 13 19 60 12 109 60 61 DN20 3/4” 17 24 61 13 111 60 61 DN25 1” 20 30.5 71 16 116 60 61 DN30 11/4” 25 47 80 17 121 60 61 Note: the above parameters are measured manually, there will be 1-3mm error, the specific object shall prevail
Smart stainless steel electric ball valve
Electric ball valve Intelligent electric valve full bore copper ball valve stainless steel ball valve, DC12V-24V AC110V-230V power adapter and automatic return setting. Normally closed electric water valve
Type：Regulatory Type
Rated voltage：DC24V(Optional)
Rated power： ≤5W（DC24V）
Control mode：无源控制/有源控制//WIFI(Optional)
System accuracy： ±0.2%
Torque：7Nm
Shell material：Rotation angle
plastic：0-330°(Custom settings)
Open/Close time 15S
Operation temperature：-25~55℃
Angle display：0-90°
Type：Regulatory Type
Rated voltage：DC24V(Optional)
Rated power： ≤5W（DC24V）
Control mode：无源控制/有源控制//WIFI(Optional)
System accuracy： ±0.2%
Torque：7Nm
Shell material：Rotation angle
plastic：0-330°(Custom settings)
Open/Close time 15S
Operation temperature：-25~55℃
Angle display：0-90°
